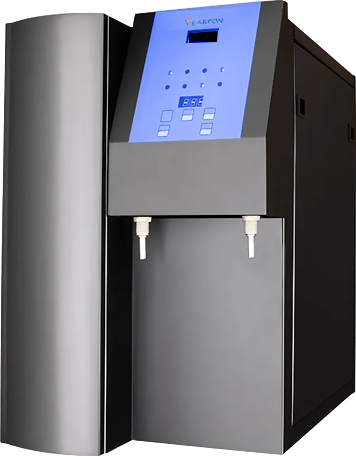

Type I Water Purification System F-WPS101
Home Water Purification Systems Water Purification System Type I Water Purification System F-WPS101

Description :Type I Water Purification System F-WPS101 is an advanced and automatic model, comes with ≥20 L/h of water production rate and 5 to 40°C of temperature range. Comprised with pretreatment system, RO system, ultrapure water system conveying unit and control system, offers built-in manual water cycling program and ultrapure water auto-cycle program. Incorporated with micro-computer control, LCD display and system alarm code, provides on-line monitoring of water resistance and LCD display of resistivity. Designed with 30 L sterile RO pure water tank, 254 nm UV lamp and dedicated pure water pump, this water purification system supports two water quality stages i.e., pure water and-ultra pure water, and provides grade I purified water from tap water. |
| Water production rate | ≥20 L/h |
| Water type | I type |
| Configuration | Desktop |
| RO pure water tank capacity | 30 L |
| Temperature | 5 to 40°C |
| Humidity | 10 to 80% RH |
| Process | Double pass RO system |
| Pure water conductivity at 25°C | <5 µs/cm |
| Ultra-pure water resistivity at 25°C | 18.25 MΩ.cm |
| Feed water | Tap water; TDS<400ppm |
| Feed water temperature | 5 to 40°C |
| Water taking rate | 1 to 1.5 L/min |
| RO membrane organics rejection | Up to 99% |
| Bacteria removal | UV lamp |
| Free chlorine | < 3 ppm |
| TOC | < 10 ppb |
| Bacteria | < 1 cfu/ml |
| Pyrogens | < 0.025 EU/ml |
| Particle | (> 0.22 μm) < 1/ml |
| Absorbance | < 0.001 (254 nm,1cm optical distance) |
| Reactive Silica (SiO2) | < 0.01 ppm |
| Heavy metal | < 0.01 ppm |
| Controller | Micro-computer |
| Display | LCD |
| Power supply | 220 V/50 Hz |
| Power | 200 W |
| Dimension (L×W×H) | 340×550×530 mm |
| Weight | 40 kg |
Features :An advanced and automatic model of Molecular pure water purification machine |
Applications:Type I Water Purification System is used for the most critical and advanced analytical procedures across cytology, HPLC, liquid chromatography, gas chromatography, ICP-MS, molecular biology, biotechnology etc. |
Standard Accessories:1st stage PP filter ×1 set |
