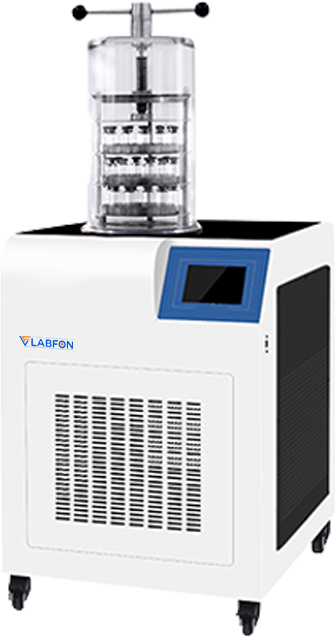

Description : Vertical Freeze Dryer F-VFDR103 is particularly suitable for research centres requiring greater freeze-drying capacity with temperature control up to -80℃, a three-layer tray, manual capping, and a freeze-drying area of 0.12 m2. It has been specifically designed with a vacuum alert option so that it can remind clients whether the vacuum degree is ordinary. It is supplemented with a wide 7-inch LCD touch screen, human-PC collaboration interface, outfitted with lock screen capability, and a PC controller. The unit comes in a standard configuration with freeze drying technology to ensure low-temperature drying that utilizes sublimation to dry out the material and freezes the water-containing material into a solid.

Specifications :

Type	Gland type
Cold Trap Size	Φ  220 x 220mm
Standard Vacuum	≦ 5Pa (no load)
Ultimate Vacuum	2PA
Freeze-Dried Area	0.08 m²
Vial Quantity	Φ 12mm 560, Φ 16mm 285, Φ 22mm 165
Cold Trap Temperature	-80℃
Water Replenishment Amount	4 Kg/Batch
Material Pallet Size	180mm total 3 layers
Total Power	1670W
Host Weight	100kg
Dimensions	600 x 558 x 760mm
Power Supply	AC220V 25A 50HZ
Applicable Environment	Ambient temperature≦ 30℃
Machine Running Noise	≦ 55dB

Features : Fast cooling, the uniform temperature on the inward mass of the trap, proficient gas redirection innovation, great water recharging impact Embrace brand blower, single machine blended ecological assurance refrigeration innovation Furnished with cold trap sample pre-freezing capability, no requirement for the low-temperature fridge or fluid nitrogen treatment 7-inch LCD touch screen, human-PC collaboration interface, outfitted with lock screen capability, and PC controller The fundamental point of interaction of the showcase screen is basic and clear, showing boundaries like set temperature, vacuum degree, test temperature, running time, and so forth. The activity is straightforward, and the administration expert for misoperation is additionally set With information review, and erasing capabilities, freeze-dried information is naturally saved, which can successfully forestall information misfortune, and upholds USB information send out Upholds lyophilization of ampoules, vials, glass flasks, plasma vials, or plate The trap has the free pre-freezing capability of the example in the beginning phase and is outfitted with a thawing-out capability Underlying upkeep update capability to help clients to remember instrument support With vacuum alert capability, it can remind clients whether the vacuum degree is ordinary Outfitted with high-accuracy miniature change vacuum valve, which can understand the miniature change of vacuum degree The vacuum interfacing pipe is made of tempered steel to erosion material and accompanies a standard vacuum clip

Applications: The freeze dryer is suitable for freeze-drying, strain preservation, and other fields in biological research, medical pharmacy, chemical industry, food processing, colleges and universities, and other fields.
