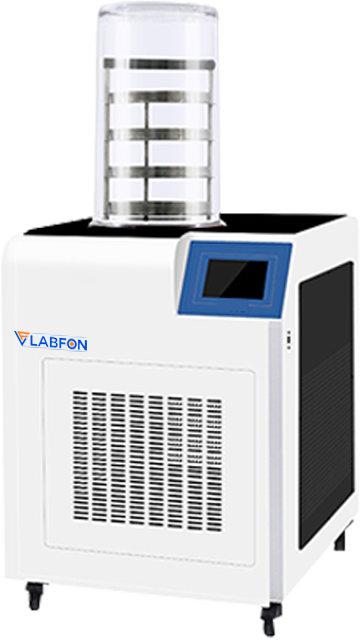

Vertical Freeze Dryer F-VFDR102
Home Freeze Dryer Vertical Freeze Dryer Vertical Freeze Dryer F-VFDR102

Description :
Vertical Freeze Dryer F-VFDR102 utilizes the sublimation method of water under the state of low temperature and low pressure to dry out the material at a low temperature. It is offered with features like temperature control of -80℃, a four-layer tray, and a freeze-drying area of 0.12 m2. It has been specifically designed with a vacuum alert option so that it can remind clients whether the vacuum degree is ordinary. It has been developed with a 7-inch LCD touch screen, human-PC collaboration interface, outfitted with lock screen capability, and a PC controller. Incorporates the latest innovations in freeze drying technology to ensure low-temperature drying that utilizes sublimation to dry out the material, and freezes the water-containing material into a solid.
|
| Type | Standard |
| Cold Trap Size | Φ 220 x 220mm |
| Standard Vacuum | ≦ 5Pa (no load) |
| Ultimate Vacuum | 2PA |
| Freeze-Dried Area | 0.12 m² |
| Vial Quantity | Φ 12mm 920, Φ 16mm 480, Φ 22mm 260 |
| Cold Trap Temperature | -80℃ |
| Water Replenishment Amount | 4Kg/Batch |
| Material Pallet Size | 200mm total 4 layers |
| Total Power | 1670W |
| Host Weight | 100kg |
| Dimensions | 600 x 558 x 760mm |
| Power Supply | AC220V 25A 50HZ |
| Applicable Environment | Ambient temperature≦ 30℃ |
| Machine Running Noise | ≦ 55dB |
Features :Furnished with cold trap sample pre-freezing capability, no requirement for the low-temperature fridge or fluid nitrogen treatment7-inch LCD touch screen, human-PC collaboration interface, outfitted with lock screen capability, and PC controller Fast cooling, the uniform temperature on the inward mass of the trap, proficient gas redirection innovation, great water recharging impact Underlying upkeep update capability to help clients to remember instrument support With vacuum alert capability, it can remind clients whether the vacuum degree is ordinary Outfitted with high-accuracy miniature change vacuum valve, which can understand the miniature change of vacuum degree The vacuum interfacing pipe is made of tempered steel to erosion material and accompanies a standard vacuum clip Embrace brand blower, single machine blended ecological assurance refrigeration innovation The fundamental point of interaction of the showcase screen is basic and clear, showing boundaries like set temperature, vacuum degree, test temperature, running time, and so forth The activity is straightforward, and the administration expert for misoperation is additionally set With information review, and erasing capabilities, freeze-dried information is naturally saved, which can successfully forestall information misfortune, and upholds USB information send out Upholds lyophilization of ampoules, vials, glass flasks, plasma vials, or plate The trap has the free pre-freezing capability of the example in the beginning phase and is outfitted with a thawing-out capability |
Applications:The freeze dryer is suitable for freeze-drying, strain preservation, and other fields in biological research, medical pharmacy, chemical industry, food processing, colleges and universities, and other fields. |
