Overhead Electric Stirrer F-OHES105

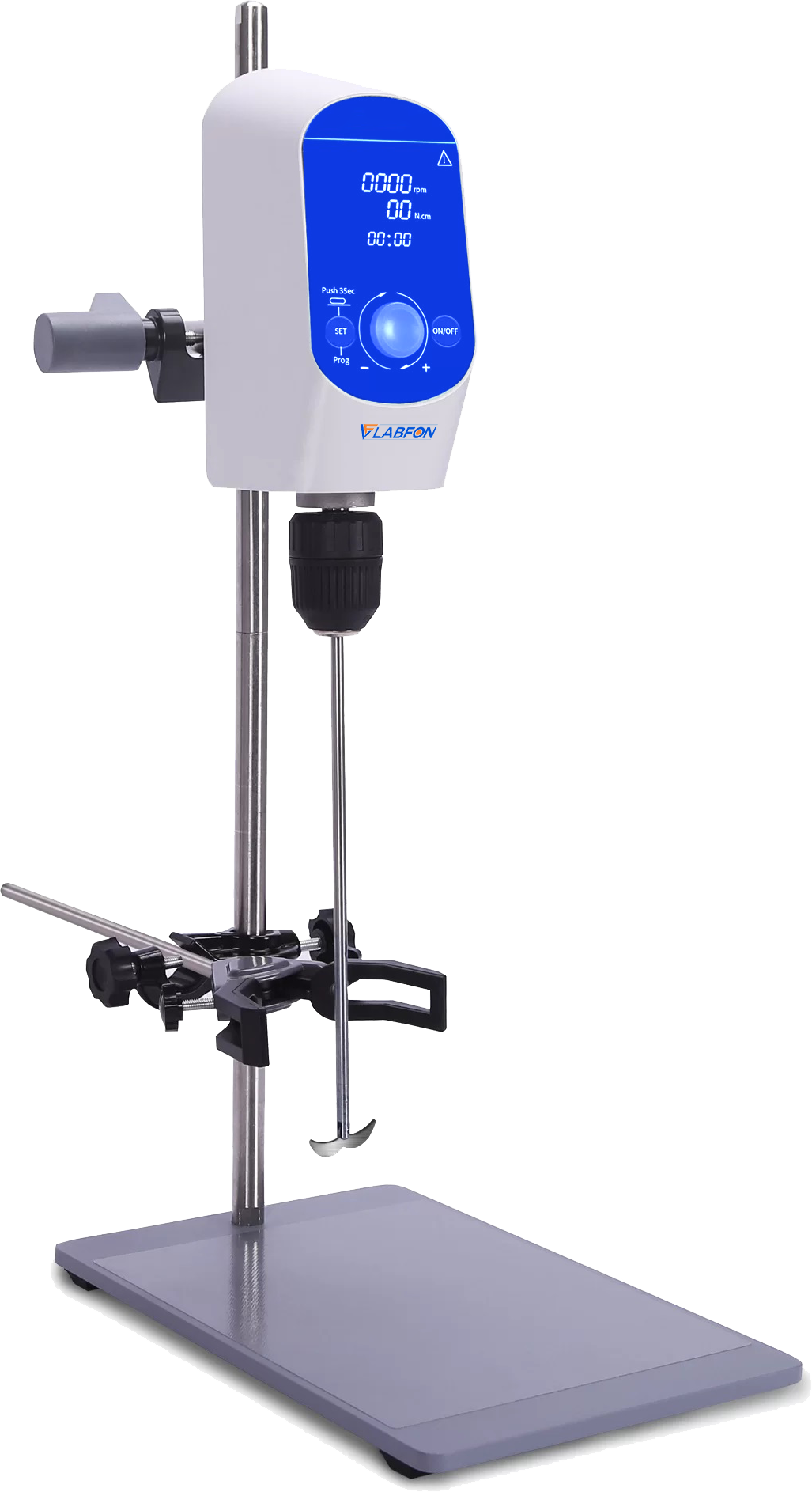

Overhead Electric Stirrer F-OHES105 is a versatile instrument suitable for suspending, recirculating and homogenizing large volume and low to high viscous liquids. It comprises a LED digital tube display and is mechanically driven by a brushless DC motor to offer a smooth operation while having a capacity of 40 L with a speed range of 100 to 2000 rpm. The instrument automatically alters the torque according to the liquid along with advanced overload protection and responsive speed control.

Speed Range100 to 2000 rpm
Speed Control Accuracy±10 %
Max. Stirring Volume40 L
Recommended Stirring Volume10 L
Maximum Stirring Viscosity10000 mPa·s
Lifting Range300 to 600 mm
Timing Range99 minutes or open
Motor TypeDC permanent magnet
Net weight10 Kg
Product size (L×W×H)370×260×600 mm
Input powerAC 100 to 240 V
Frequency50/60 Hz
Power120 W

LED digital tube displays clear visible data values which are easy to record

Brushless DC motor offers smooth running, noiseless and maintenance-free operation

Automatically adjustable torque alters with the thickness of the sample liquids

Various size containers can be placed due to sufficient surface area

Saftey protection through automatic power-off on over-loading

Flexible stirring stick to be customized with different vessels loading and unloading

Automatic shifts circuit in case of unusual conditions

Overhead Electric Stirrer are widely used for homogenization liquids of high viscosity(thickness) and suspending materials or emulsifying fats and oils in various industries such as chemical, drug manufacture, bio-technology and life science research laboratories.
