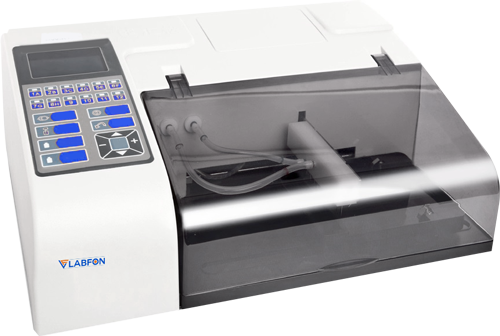

Microplate washer F-MPW101 is a microprocessor controlled washer to wash 48 well and 96 well microplates with three dispensing channels. It is suitable for flat, U and V-bottom microplates with multi-plate selection by default or manual operation. Features two aspirating positions with a residual volume of < 0.7 µl / well. Detachable manifold and microplate holder for easy disinfection and cleaning. Automatic D/W rinsing avoids crystallization in pipes.
Flat, round, U, V plates ( 96-wells and 48-wells )
Manifold types
8 way and 12 way
Wash head type
-
Wash times
1 to 99 times selectable
Wash lines
1-12 lines selectable
Residual volume
< 0.7 µl / well
Wash modes
Plates or Strips
Dispensing uniformity
CV < 1.5 %
Dispensing volume
50 ~ 950 μl, interval 50 μl adjustable ( May extend to 0-6000 μl, interval 25 μl adjustable )
Wash speed
-
Number of dispensing channels
3 channels ( can be extended to 5 channels )
Soaking and shaking time
0 ~ 999 (seconds/minutes/hours) adjustable
Aspiration time
0.1~ 9.9 seconds (adjustable), interval 0.1 secs
Microplate positions
-
Wash head positions ( adjustable )
-
Bottle volume
-
Pipeline wash time
0 ~ 240 seconds (adjustable)
Distilled water wash interval
0 to 20 plates
Power
220 V AC ± 30 % / 50 Hz ± 3 Hz
Dimensions
446 x 368 x 164 mm
Weight
9 kgs
Suitable for flat, U and V bottom plates
Default multiplate selection or Manual operation
Two aspirating positions
Stop or pause key for choosing to stop or pause between operation
Easy to clean line and holes ( unnecessary to clean whole plate or strip )
Simple rinse procedure reduces contamination between plates
Wash bottle filter keeps sediments in the solutions away from pipes
Pump pressure control technology avoids clogging in needles
Detachable manifolds makes it easy to clean
Waste water sensor prevents overflow in waste bottle
Easy naming, editing and saving different 100 wash programmes
Solution / waste water bottle – 300 ml , 2000 ml , 5000 ml , 10 L , 20 L
Used in clinical diagnostic laboratories, centers for disease control and prevention, animal and plant quarantine, animal husbandry veterinary epidemic prevention stations, biotechnological industries, food industries , environmental science, agricultural scientific research and other academic organizations
