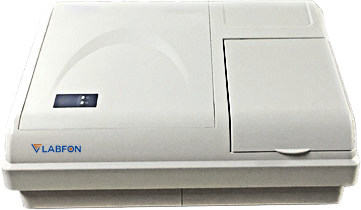

Microplate reader F-MPR101 is a fast and accurate reader with 8 channel dispension and a wavelength range of 400 ~ 750 nm. Equipped with shaking function with adjustable speed and time. Features horizontal or longitudinal arrangement of 96 well plates with multiterm testing. Suitable for self-contrast with row and column subtraction with self-check diagnosis for optical parts. Built-in features include quick blank tagging, quality control and multi valued comparison.
6V, 10 W tungsten halogen lamp (work over 5000 hrs.)
Measurement methods
single wavelength , dual wavelength , multiple wavelength , two point method , dynamic assay
Calculation method
absorbance, single point calibration, linear regression, quadratic curve, four parameters equation
Measuring speed ( single wavelength )
3 secs per 96 wells
Measuring speed ( dual wavelength )
9 secs per 96 wells
Measurement range
0.0000 ~ 4.5000 Abs
Temperature
5 °C ~ 40 °C
Indication range
-
Resolution
0.0001 A
Linearity
± 0.5 % or < 0.025 A
Repeatability difference
< 0.1 % or ± 0.0025 A
Rows and column difference
< 0.01 A
Accuracy
-
Reproducibility
-
Display
-
Data storage
300 test programmes , 5 pieces of 96 wells
Additonal filters
-
Power supply
100 V ~ 240 V
Dimension
525 x 420 x 260 mm
Weight
9 kg
Eight channel zero dispersion
Automated well centre positioning
96-well testing in 3 secs
Adjustable shaking speed and time
Horizontal or longitudinal 96-well microplate arrangement
Self-contrast with rows and column subtraction
Multitermtesting ( 1 microplate upto 12 terms )
Automatic tracking and analysis with data change trend
Test data saving in MS excel for further analysis
Used for DNA, RNA quantity measurement with fluorescent dyes (eg. Pico Green), DNA, RNA and protein quantification, analytic immune and biochemistry assays (eg. ELISA) and kinetic analyses
