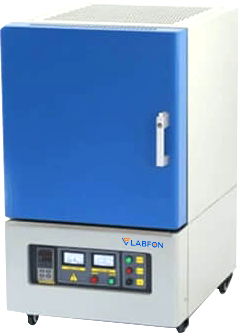

Muffle Furnace F-MFFN105 is a microprocessor controlled furnace with 1200°C maximum temperature and 80 L capacity. Furnace is made of high quality alumina polycrystalline fiber curing furnace formed by vacuum suction filtration, and is efficiently designed for minimal space requirement in the laboratory. It features heating elements such as imported resistance wire (Kanthal A1, Sweden), K type thermocouple. It has the functions of over-temperature, break-off, over-current protection, etc. It has the advantages of temperature field balance, low surface temperature, fast temperature rise and fall, and energy saving. It is accurate in measuring and controlling the temperature and is equipped with instantaneous energy consumption indicator, calculator for average working temperature and descriptive error indicator.
The furnace is equipped with travel switch when the furnace door is opened, the main electric furnace will automatically power off
Safety Protection system
The furnace is equipped with safety and air switch when the current exceeds the rated current of the open air, the open air will automatically jump, effectively protecting the furnace
Silicon controlled
SEMIKRON 106/16E
Temperature Control Accuracy
+/- 1 ℃
Ambient surface Temperature
≤35℃
Interface
RS485 Communication Interface
Power consumption
16 kW
Power supply
220 V
Dimension
766 × 887 × 1130 mm
Designed with 30-stage program temperature control intelligent PID adjustment
Offers over-temperature protection, the electric furnace heating circuit is automatically cut-off
France is made up of High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration
Material used stainless steel, will not rust, and will not slag when used for a long time
Accurate measurement and control of temperature using K type thermocouple
The furnace is equipped with communication interface and software
The surface of the furnace is smooth and not easy to drop powder
The furnace is equipped with safety and air switch when the current exceeds the rated current of the open air, the open air will automatically jump, effectively protecting the furnace
The double-layer furnace shell is equipped with an air-cooling system, which can quickly and gently adapt rise and fall in temperature
4 surface heating (left and right, four sides), the temperature field is more balanced
Offers, Power off protection, Temperature self-turning function
Muffle Furnace is used in many research centers, medical laboratories to determine the non-volatile and non-combustible proportion of the sample. The testing device is also used for highly sophisticated metallurgical applications. All types of Muffle Furnace s work on the basis of conventions, conductions, and with the electrical resistance heating elements.
