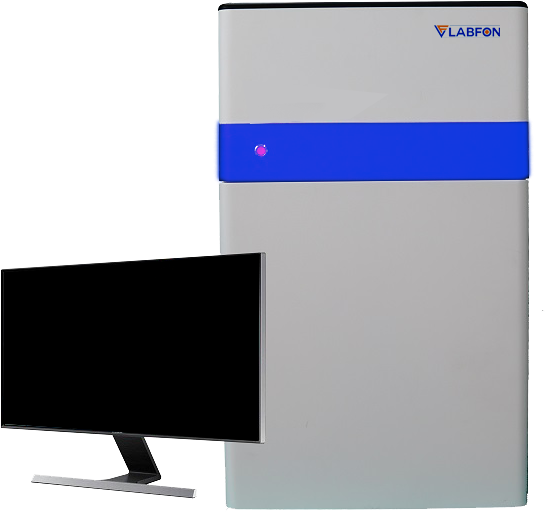

Gel Documentation System F-GDS102 is controlled by software driven image capture system and comes with complete with analysis software which can automatically identify 8-bit, 10-bit, 12-bit, 14-bit and 16-bit images. The system’s software has the RGB Light Source and filters with 590nm Standard filter. It has CCD Camera with advanced resolution and detection sensitivity. It is an ultimate gel documentation workstation with automatically and manually recognize the lanes and bands supports the calculation of the density, integral and peak value.
less than 5pg Double-stranded DNA (stained with EB)
Lens Specification
F1.2 motorized lens
Lens Control
Automatic focus to avoid human operation errors
Light Source White LED*2
Yes
UV Sample Tray
Orbital UV plate brings uniform light intensity
UV Sample Tray Wavelength
302nm
UV Sample Tray Dimension
21cm*27cm
Trans-White Sample Tray
Plug-in white light plate with tempered glass surface
Trans-White Sample Tray Dimension
Dimension: 21cm*26cm
UV Protection Shield
Yes
System Protection
Time set to turn off the UV light source automatically
Software Image Capture
Yes
Software Image Analysis
Yes
Programmed and manual identification of lanes and bands supports the most appropriate way to analyse the results according to the sample
It has the reliable quality Lens like F1.2 motorized lens with 6x optical zoom
The software program has the ability for the automatic focusing of samples by algorithm, evading the error of humanoid decision
The Filter System has 590nm Standard filter
The Light Source used in this device is RGB Light Source
The Sample trays provided in the instruments are UV
Transilluminator with Standard 302nm, Blue Light plate and white light transmission
Automatically recognize 8-bit, 10-bit, 12-bit, 14-bit and 16-bit images
The samples are UV Protected using a UV Protection Shield
The image acquisition and analysis software provide multi-language operation interface
To make the user to operate conveniently
It has many features as Add, delete, adjust the lanes and bands
Automatically and manually calculate the density, integral and peak value of each band in the lanes
It can calculate of the optical density, molecular weight and mobility of the bands more accurate
Appropriate for the calculation and quantifiable examination of the optical density for various samples
Study information can be directly output to excel files
Complete open entry dark box without light outflow
Programmed door opening safety system to avoid UV damage
Operators can set the time for programmed finish of the UV light down
The upper shelter can be taken apart and maintenance is more convenient
DNA/RNA detection Various fluorescent dyes, such as: EtBr, Gel Red, Gel Green, SYBR ™ Gold, SYBR ™ Green, SYBR ™ Safe, Texas Red labelled DNA / RNA detection; Protein detection Coomassie brilliant blue, silver-stained glue and fluorescent dyes, such as: Sypro ™ Red, Deep Purple and Pro-Q Diamond, labelling glue / membrane / chip, etc.
