Double Beam UV-Visible Spectrophotometer F-DUVS201

Home Spectrophotometer Double Beam UV Visible Spectrophotometer Double Beam UV-Visible Spectrophotometer F-DUVS201

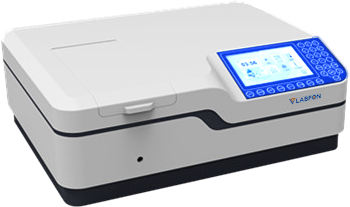

Double Beam UV-Visible Spectrophotometer F-DUVS201 is a Double Beam UV-Visible Spectrophotometer with 190 to 1100 nm wavelength range, Deuterium Lamp (UV light) and Tungsten lamp (visible light) as a light source. Designed with black panel adjacent to LCD screen contains various operational keys. Advanced ARM system and long optical system ensures precision measurements and good stability.

Specification Features Applications Standard Accessories Optional Accessories Download Catalog

Optical system	Double beam, grating 1200 lines/ mm
Wavelength range	190 nm ~ 1100 nm
Spectral bandwidth	2 nm
Wavelength accuracy	± 0.3 nm
Wavelength repeatability	≤ 0.1 nm
Photometric accuracy	± 0.3 % T ( 0 to 100% T)
Photometric repeatability	± 0.1 % T ( 0 to 100% T)
Photometric range	0 to 200 % T, 3 to 3 A
Stray light	≤ 0.03 % T
Stability	± 0.0003 A/ h @ 500 nm
Baseline flatness	± 0.0010 A
Photometric mode	T , A , C , E
Scanning speed	Fast, mid, slow
Wavelength setting	Automatic
Display	7 inch color LCD display
Light Source	Imported deuterium and tungsten lamp
Detector	Imported silicon photodiode
Data output	USB/ RS 232
Power	AC 220 V/ 50 Hz Or AC110 V/ 60 Hz
Dimension	590 × 475 × 250 nm
Packaging dimension	770 × 630 × 340 nm
Net weight	20 kg
Gross weight	26 kg

7 inch Digital LCD display

190 to 1100 nm Wide Wavelength range

Built-in memory storage up to 5000 tests data or 500 working curves

Fixed 2 position cuvette holder, one for sample other for reference

21 CFR part 11 compliant software

Performs photometric, quantitative, kinetic, spectrum scan, multi-wavelength measurements

Switches lamps without optics debugging, for easy replacement

USB port for data transfer to PC and other devices for further analysis, processing

Available with optional Auto 8 Cell holder

Used in biochemistry, biotechnology, microbiology, chemistry, pharmacy, water testing, environmental and food science industries for Quality & Research analysis.

F-DUVS201

Accessories No.	Name
1	Glass cuvettes 5 to 100 mm
2	Quartz cuvettes 5 to 100 mm
3	Manual 4- cell holder (10 to 100 mm)
4	Auto 8- cell holder
5	Tungsten lamp
6	Deuterium lamp
7	21 CFR part 11 compliant software

Accessories No.	Name	Qty.
1	Glass cuvette 10 mm	1 set of 4
2	Quartz cuvette 10 mm	1 set of 2
3	Power cable	1
4	PC software	1
