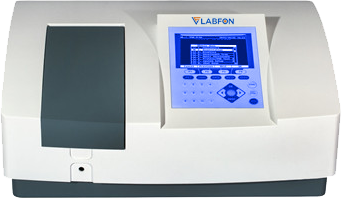

Double Beam UV-Visible Spectrophotometer F-DUVS103

Home Spectrophotometer Double Beam UV Visible Spectrophotometer Double Beam UV-Visible Spectrophotometer F-DUVS103

Double Beam UV-Visible Spectrophotometer F-DUVS103 is a high sensitive optic spectrophotometer with a wavelength range of 190 ~ 1100 nm. Equipped with spectral scanning, photometric / quantitative measurement with a bandwidth variance of 0.5 / 1 / 2 / 4 and 5 nm for peak resolution. Touch screen panel for easy touch monitoring of parameters. Built-in ARM system for high accuracy and low stability.

Specification Features Applications Download Catalog

Wavelength range	190 nm ~ 1100 nm
Spectral bandwidth	0.5 nm, 1 nm, 2 nm, 4 nm, 5 nm
Wavelength accuracy	± 0.3 nm
Wavelength repeatability	≤ 0.1 nm
Photometric accuracy	± 0.3 % T ( 0 % ~ 100 % T )
Photometric repeatability	± 0.1 % T ( 0 % ~ 100 % T )
Stray light	0 ~ 200 % T
Stability	≤ 0.03 % T
Baseline flatness	± 0.0005 A/h at 500 nm
Photometric mode	T , A , C , E
Noise	± 0.001A
Scanning speed	Slow. mid, fast
Wavelength setting	Auto
Display	8 inch color touch LCD
Light Source	Tungsten and Deuterium lamp
Detector	Silicon photodiode
Data output	USB / RS232 / SD card
Power	AC 110 V / 60 Hz , AC 220 V / 50 Hz
Dimension	590 x 475 x 250 mm
Weight	20 kg

Wavelength ( 190 to 1100 nm )
Spectral bandwidth variance 0.5 / 1 / 2 / 4 and 5 nm
Data export – can be connected to computer and printer
Large sample chamber for accommodation of varying capacity cuvettes
Independent spectral scanning with qualitative and quantitative measurement
Built in ARM system for high accuracy
8 cell holder ( optional )
Data export – USB / can be connected to computer and printer

Used in biology, pharmaceutical analysis, biochemistry, medical & health, clinical testing, petrochemical, environment protection, quality control, life sciences and scientific research

F-DUVS103
