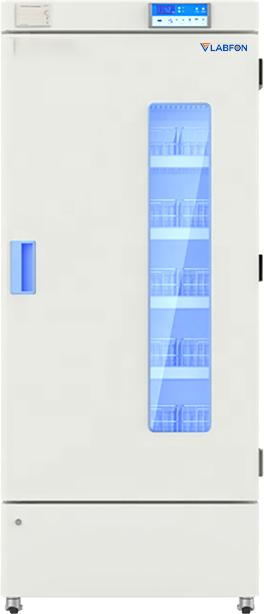

Blood Bank Refrigerator F-BBRF104 is a microprocessor-controlled upright type unit, offers 368 L of capacity and 2 to 6°C of temperature setting range with 16 to 32°C ambient temperature. With built-in sensors for upper/lower zone temperature, ambient temperature, evaporator temperature, and operation control, features high precise temperature control system and automatic defrost. Equipped with return air duct design and advanced air cooling with DC/DC power management module, has R134a refrigerant, EBM fan motor and high-efficient compressor. Designed with spray cold rolled steel plate housing and stainless-steel interior, has 5 steel coated wire shelf with 20 blood- basket. Incorporated with digital display and advanced audible and visual alarm system, this blood bank refrigerator also supports RS485 interface and printer.
High/Low temperature, Power failure , Low battery, Sensor error, Door ajar, Condenser overheating, Built-in datalogger USB failure
External Material
Spray cold rolled steel plate
Internal Material
Stainless steel
Insulation thickness
54 mm
Shelves
5 (coated steel wired shelf)
Blood basket
20
Casters
4 (2 casters with brake) + (2 leveling feet)
Door lock with Key
Yes
Access Port
1 pc. Φ25 mm
Data Logging/Interval/Recording Time
USB/Record every 10 min/ 2 years + Printer output data
Backup Battery
Yes
Power supply
220 V 50 Hz
Power
350 W
Power consumption
3.56 kW/24 h
Rated current
2.4 A
Internal dimension (W×D×H)
677×493×1145 mm
External dimension (W×D×H)
806×723×1870 mm
Packaging dimension (W×D×H)
860×760×2023 mm
Net weight
163 kg
Gross weight
200 kg
A microprocessor-controlled upright type unit with 368 L of capacity
2 to 6°C of temperature setting range with 16 to 32°C ambient temperature
Built-in sensors for upper/lower zone temperature, ambient temperature, evaporator temperature, and operation control
High precise temperature control system and automatic defrost, stable operation
Return air duct design with advanced air cooling, uniform temperature control
DC/DC power management module, energy-efficient and stable operation
R134a refrigerant, EBM fan motor and high-efficient compressor, safe and stable
Spray cold rolled steel plate housing and stainless-steel interior, easy-to-maintain
5 steel coated wire shelf with 20 blood- basket, organized and efficient storage
Digital display, allows ±1? of temperature precision inside cabinet
Advanced audible and visual alarm system, ensures safe operation
Supports RS485 interface and printer
Blood bank refrigerator is used for safe and convenient storage of whole blood, blood components such as blood cells, plasma etc., and reagents across blood bank, hospitals, health and disease prevention systems, research institutions, colleges & universities, electronic industry, biological engineering, biotechnology, military enterprises, deep-sea fishing companies, etc.
