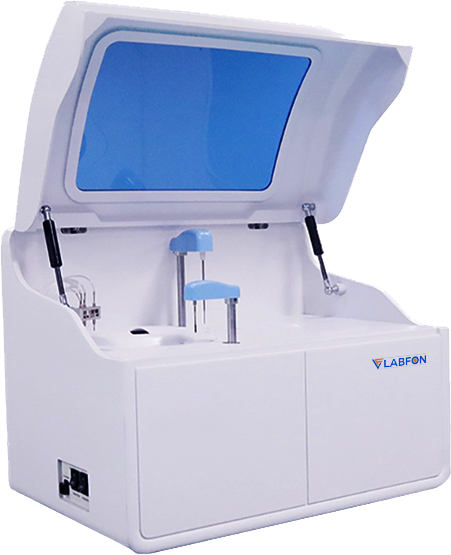

Labfon Auto Chemistry Analyzer F-AMCA102 is a bench top, fully automated chemistry analyzer with a throughput of 600 tests per hour which is designed to meet the requirements of a wide range of customers with flexible analyzer enabling easy addition of new methods. It is possible to program and store almost unlimited number of protocols, arranged on a panel drawn up the user according to the needs. The user-friendly interface provides a long life platform for analytical excellence. This system includes reagents, controls and calibrators where execution is pure random access with the possibility to choose the batch mode.
Linear: K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5
Quality Control
Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D)
Software
Windows 7/8/10, 32 or 64bit
LIS System
Bi-direction, support HL7 protocol
Interface
LAN port access
Printer
External, multiple reporting mode available
Temperature
10 to 30°C
Temperature Control
37±0.1°C, real time monitor
Water Consumption
Deionized water: 15L/H
Power Supply
AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W
External Dimension (W×D×H)
1167×780×1016 mm
Package Dimension (W×D×H)
1348×928×1399 mm
Net Weight
216 kg
Gross Weight
290 kg
Programmable automatic stand-by and wake-up functionalities
Intelligent software
High quality components
Uninterrupted workflow
Inventory management
Cost effective operation
Crash and collision detection
Robust testing capabilities
Efficient reagent and consumable use
Simplify operations with user friendly graphical user interface design and touch-screen monitor
Built-in barcode scanner
Refrigerated tray with independent switch
Labfon Auto Chemistry Analyzer is used in many Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc.
